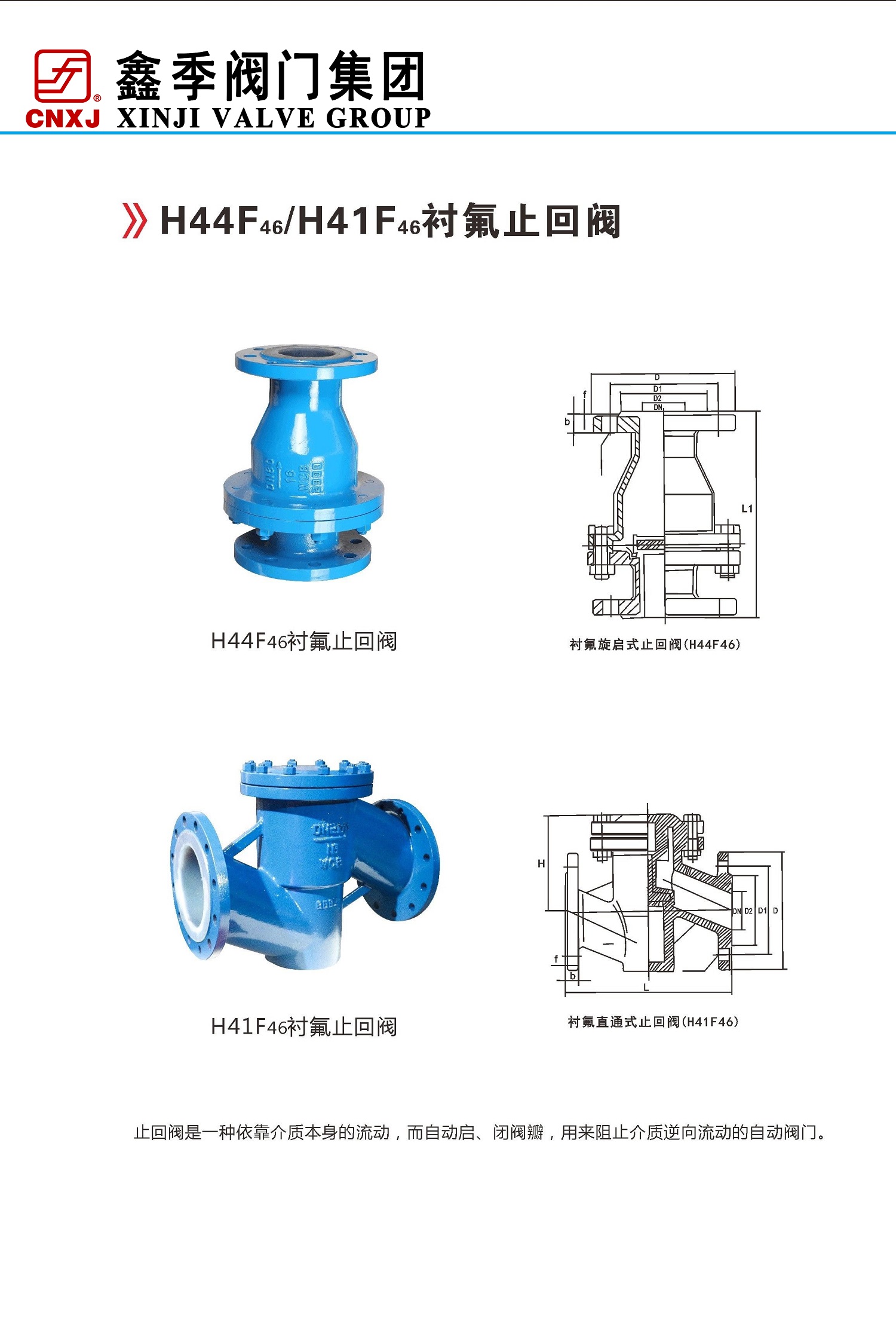

衬氟卧式升降止回阀H41F46

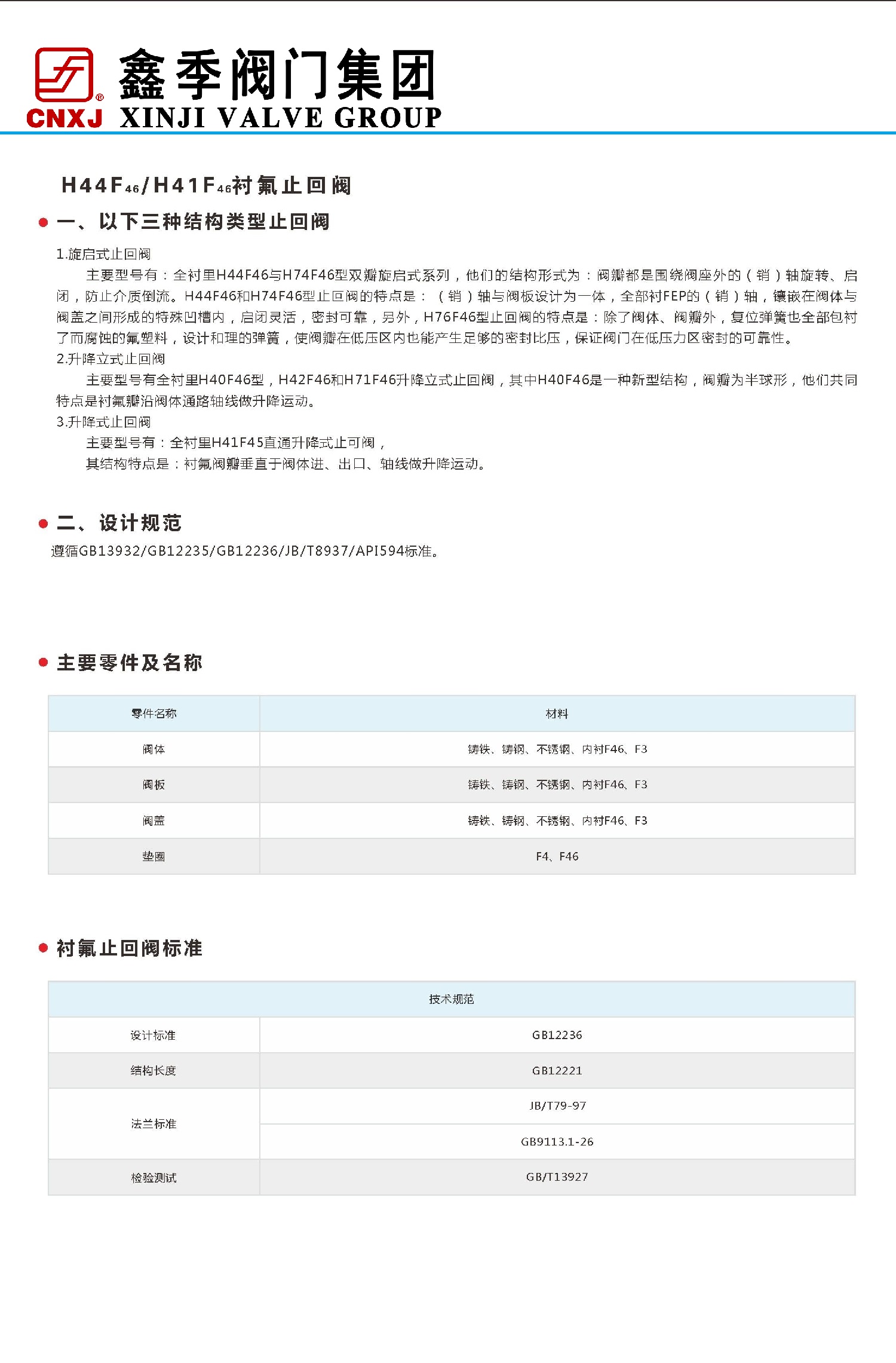

主要零件及材料  Main parts and materials

零件名称   Part name材料   Material
阀体   Body铸钢Cast steel不锈钢Stainless steel、内衬Lining F4  、F46
阀瓣   Disc铸钢Cast steel、不锈钢Stainless steel、衬Lining F4  、F46
阀盖   Cover铸铁Cast iron、铸钢Cast steel、不锈钢Stainless steel、内衬Ling F4、F46
垫圈   WasherF4、F46

 ■衬氟止回阀标准  PTFE-lined Check Valve Standard

技术规范Technical specification
设计标准Design standardGB12236
结构长度Structure lengthGB12221
法兰标准Flange standardJB/T79-94
GB9113.1-26
检验试验Inspection testGB/T13927

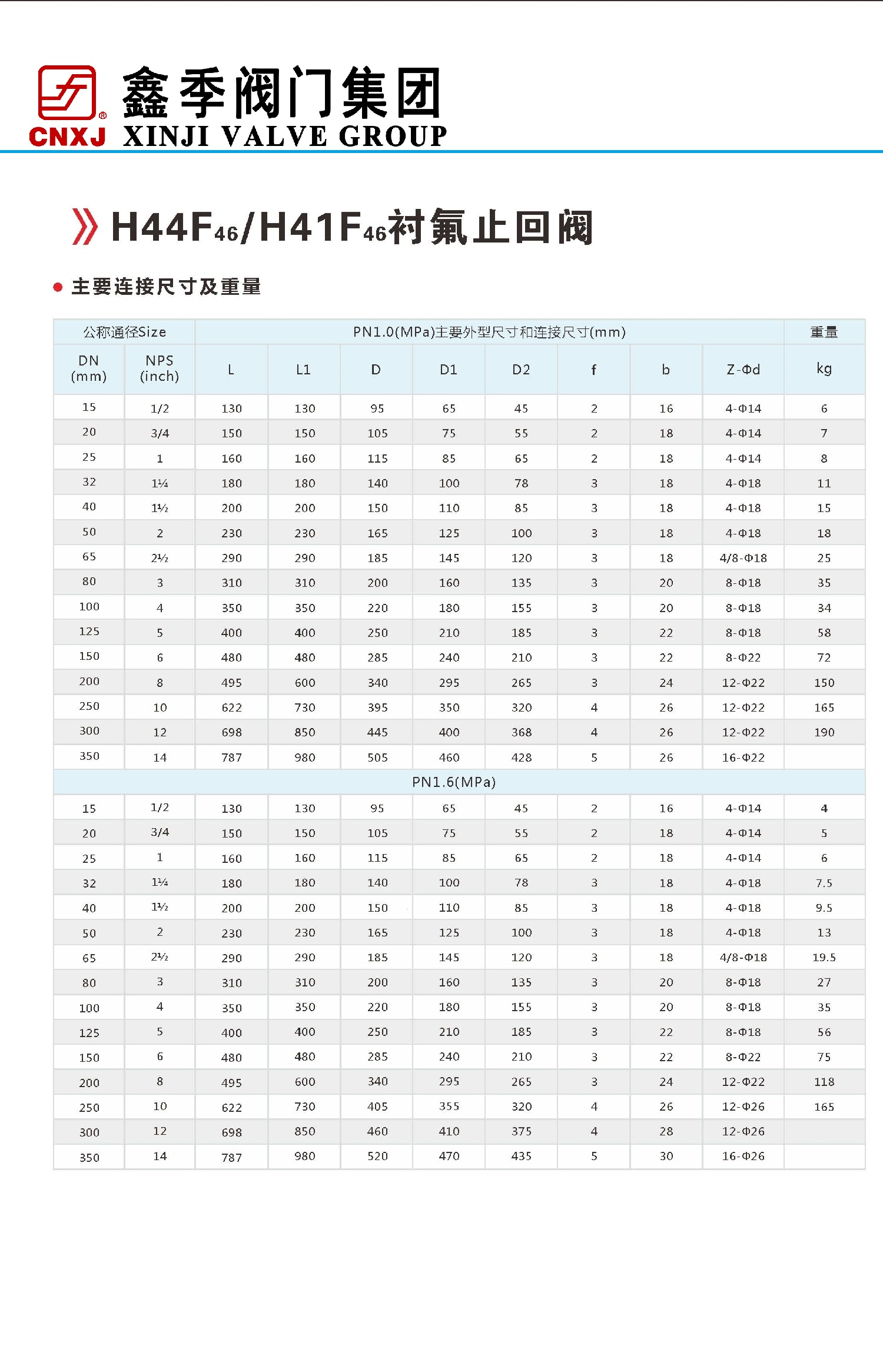

主要外形尺寸和连接尺寸Main form and  connection size

公称通径Nominal diameterPN1.0(MPa)主要外形尺寸和连接尺寸
Main form and  connection size
重量
Weight
DN LDD1D2fbz-ΦdD0H1Kg
151309565433144-Φ1495556
2015010575503144-Φ14105587
2516011585603164-Φ14115608
32180135100683184-Φ181407511
40200145110803184-Φ181508215
502301601251003204-Φ181659518
652901801451153.5204-Φ1819010525
803101951601303.5228-Φ1820012035
1003502151801504248-Φ1822513546
1254002452101804268-Φ1826515865
1504802802402104288-Φ1830018092
20060033529526053212-Φ23360215152
25073040535531953612-Φ26450240230
30085046041037064012-Φ26500300330
